refrigerator capillary copper tube

FOB Price:

US 8,500-9,500 / Ton

Min.Order Quantity:

1 Ton/Tons

Supply Ability:

500000 Ton/Tons per Year

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/P,T/T

Brand:

G&X

Products Model:

C12200, C11000, C12000,C10200

Products Details
Company Profile

Quick Details

Brand Name: G&X

Model Number: C12200, C11000, C12000,C10200

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export carton + ply-wooden pallet
Delivery Detail: --

Specifications

refrigerator capillary copper tube

Specifications

copper capillary tube:

1 Grade:C10200 C12200
2 Outside diameter: less than 5.0 mm
3 Thickness: less than 0.5 mm

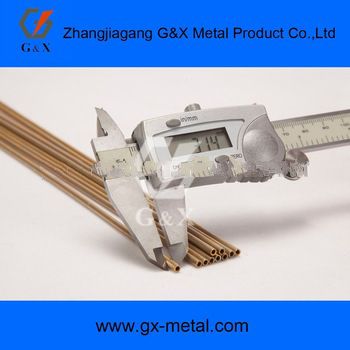

Capillary copper tube C10200 C12200 Copper Precision Tube

Zhangjiagang G&X Metal Product Co.,ltd is a leader in Capillary copper tube manufacturing with various worldwide applications. We pride ourselves in excellent quality products with competitive pricing and prompt delivery. Our group of competent engineers develops and improves our products using specially design and advanced equipment to meet the special needs to our clients. With a strong sales team, our marketing member easily serves our customers anywhere.

Specifications of Capillary copper tube:
1 Grade:C10200 C12200 etc.
2 Outside diameter: 1.6mm-5mm
3 Thickness: 0.27mm-2.0mm
4 Coil weight: 5kg/20kg/30kg/50kg
5 Process Method: cold drawn and cold rolled
6 Surface: pickled or sand blasting

Specifications	Unit weight	O.D	I.D	Bottom Wall Thickness TW	Fin Groove Depth HF	TotalWallThickness	Apex Angle	Helix Angle	Number of Tooth
Φ5.00×0.20+0.15-18°	33	5.00	4.30	0.2	0.15	0.35	40	18	40
Φ7.00×0.25+0.10-15°	52	7.00	6.30	0.25	0.10	0.35	40	15	65
Φ7.00×0.25+0.18-18°	57	7.00	6.14	0.25	0.18	0.43	40	18	50
Φ7.00×0.25+0.22-16°	58	7.00	6.06	0.25	0.22	0.47	22	16	54
Φ7.00×0.27+0.15-18°	60	7.00	6.16	0.27	0.15	0.42	53	18	60
Φ7.94×0.25+0.18-18°	65	7.94	7.08	0.25	0.18	0.43	40	18	50
Φ7.94×0.25+0.20-18°	66	7.94	7.04	0.25	0.20	0.45	40	18	50
Φ7.94×0.26+0.17-18°	66	7.94	7.08	0.26	0.17	0.43	40	18	50
Φ7.94×0.28+0.20-18°	72	7.94	6.98	0.28	0.20	0.48	40	18	50
Φ7.94×0.30+0.20-18°	76	7.94	6.94	0.3	0.20	0.50	40	18	50
Φ9.52×0.27+0.16-18°	82	9.52	8.66	0.27	0.16	0.43	30	18	70
Φ9.52×0.28+0.12-15°	80	9.52	8.72	0.28	0.12	0.40	53	15	65
Φ9.52×0.28+0.15-18°	83	9.52	8.66	0.28	0.15	0.43	53	18	60
Φ9.52×0.28+0.15-25°	88	9.52	8.66	0.28	0.15	0.43	90	25	65
Φ9.52×0.28+0.20-18°	85	9.52	8.56	0.28	0.20	0.48	25	18	55
Φ9.52×0.28+0.20-18°	88	9.52	8.56	0.28	0.20	0.48	40	18	60
Φ9.52×0.30+0.20-18°	90	9.52	8.52	0.3	0.20	0.50	30	18	60
Φ9.52×0.30+0.20-18°	94	9.52	8.52	0.3	0.20	0.50	53	18	60
Φ9.52×0.34+0.15-25°	104	9.52	8.54	0.34	0.15	0.49	90	25	65
Φ9.52×0.40+0.25-18°	123	9.52	8.22	0.4	0.25	0.65	40	18	60
Φ12.00×0.36+0.25-18°	140	12.00	10.78	0.36	0.25	0.61	40	18	70
Φ12.70×0.35+0.25-18°	155	12.70	11.50	0.35	0.25	0.60	53	18	70
Φ12.70×0.40+0.25-18°	170	12.70	11.40	0.4	0.25	0.65	53	18	70
Φ12.70×0.50+0.25-18°	201	12.70	11.20	0.5	0.25	0.75	53	18	75
Φ12.75×0.36+0.21/0.25-20°	150	12.75	11.53	0.36	0.25	0.61	48	20	70
Remark:These are common sizes which the company is making,and unusaal sizes with special requirement can be tailor-made against order.

Inspection for Capillary copper tube :
Chemical Analysis -- Component Analysis--- Spectroscopic Analysis--- Physical Property Inspection--- Eddy Current Inspection - Ultrasonic Inspection
Mill Test Certificate is supplied with shipment
Third Part Inspection is acceptable

Features of Capillary copper tube:
1) Small external diameter
2) High precision
3) Smooth internal and external surface

Applications of Capillary copper tube:
1) Air Conditioner and Refrigerator
2) Water Tube service and Distribution
3) Fire Protection, Solar, Fuel/Fuel Oil
4) Natural Gas, Liquefied Petroleum (LP) Gas
5) HVAC, Snow Melting, Drain, Waste, Vent Piping
6) Heat Exchange
